Featured Product

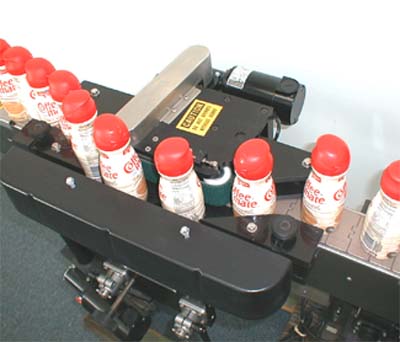

Bottom Coding Diverter
by CSS International Corporation
Versatile: Ink jet coding,
laser marking and bottom labeling
Simply attaching the Diverter (Patent Pending)
to your existing conveyor enables bottom access to containers
for base coding, printing, labeling, etc., when used in
conjunction with existing print or label applications.
Counter rotating belts and positive guides ensure that all
containers follow a path over the conveyor edge, controlled at
all times. Adjustments for different sizes of containers take
only minutes, without the need for change parts.
The standard unit handles most container shapes and sizes up to
4.75 inches wide. Variable speed drive and controls ensure that
the unit matches existing conveyor line speeds. Manufactured in
anodized aluminum and stainless steel with safety guards and
hygienic sub-components to U.S. electrical codes and OSHA
regulations.
Specifications
 | 120 VAC single phase 50/60 Hz service requirements |
| Line surface speeds up to 125 ft/min.
(Example: 2 1/2” oval at 680 containers per min.) |
| (2) 1/8 HP Permanent Magnet Gear Motor 130V DC TENV |
| Vari-Speed Controller with Adjustable Torque 120V AC
50/60 Hertz in NEMA 1 Enclosure |
Options
| Shaft Encoder |
| High Speed Drives |
| Explosion Proof Motors |
| Wide & Narrow Face Belts |
| Tapered Container Belt Faces |
| Additional Conveyor Mounting Plates |
| Full Safety Guard with Door Interlocked Isolator
|
|
|
CD
ROM |
Interactive CD ROM of Products
and Services now available from CSS. All current
data sheets and brochures included on the CD in
.PDF format.
|
|
